TD-41335/TD-41350 Axial Rolled Tube Processing MachineHydraulic Axial Rolled Tube Processing Machine

TD-41335 Tube Roll Grooving Machine | Axial Grooving & Beading for Conveyor Rollers

Name: TD-41335 Tube Roll Grooving Machine | Axial Grooving & Beading for Conveyor Rollers
Brand: TONG DA Precision
SKU: b10fd22ec646697f
Availability: PreOrder

ID：TD-41335

Introduction

—

TD-41335 is a hydraulic axial tube roll grooving machine. It cold-rolls external grooves, beads and reductions on metal tube with no roll marks and stable depth; grooving wheels change quickly. For steel, stainless, copper and aluminum tube in conveyor rollers, gas springs, furniture and sports equipment.

Specification

—

Voltage

220V~415V

Video

TD-41335 Axial Roll Grooving Machine – Tube OD Grooving | TONG DA

TD-41335 Hydraulic Axial Roll Grooving Machine – Shock Absorber Tube | TONG DA

TD-42815 Gas Spring Tube Roll Grooving Machine – OD23 Stainless Steel | TONG DA

TD-42815 Gas Spring Tube Roll Grooving Machine – Gas Lift Tube | TONG DA

TD-41860 Hydraulic Tube Cutting & Roll Grooving Machine – Furniture Tubes | TONG DA

TD-41860 Tube Cutting Machine – Rotary Cutting | TONG DA

TD-42201 Roll Grooving Machine – OD25.4 Aluminium Tube Grooving | TONG DA

TD-42201 Roll Grooving Machine – OD31.8 Aluminium Decorative Tube | TONG DA

TD-41860 Hydraulic Tube Cutting & Roll Grooving Machine – OD12.7 Tube | TONG DA

TD-4 Axial Roll Beading Machine – Tube Beading | TONG DA

Finished machinery

Tube OD roll beading

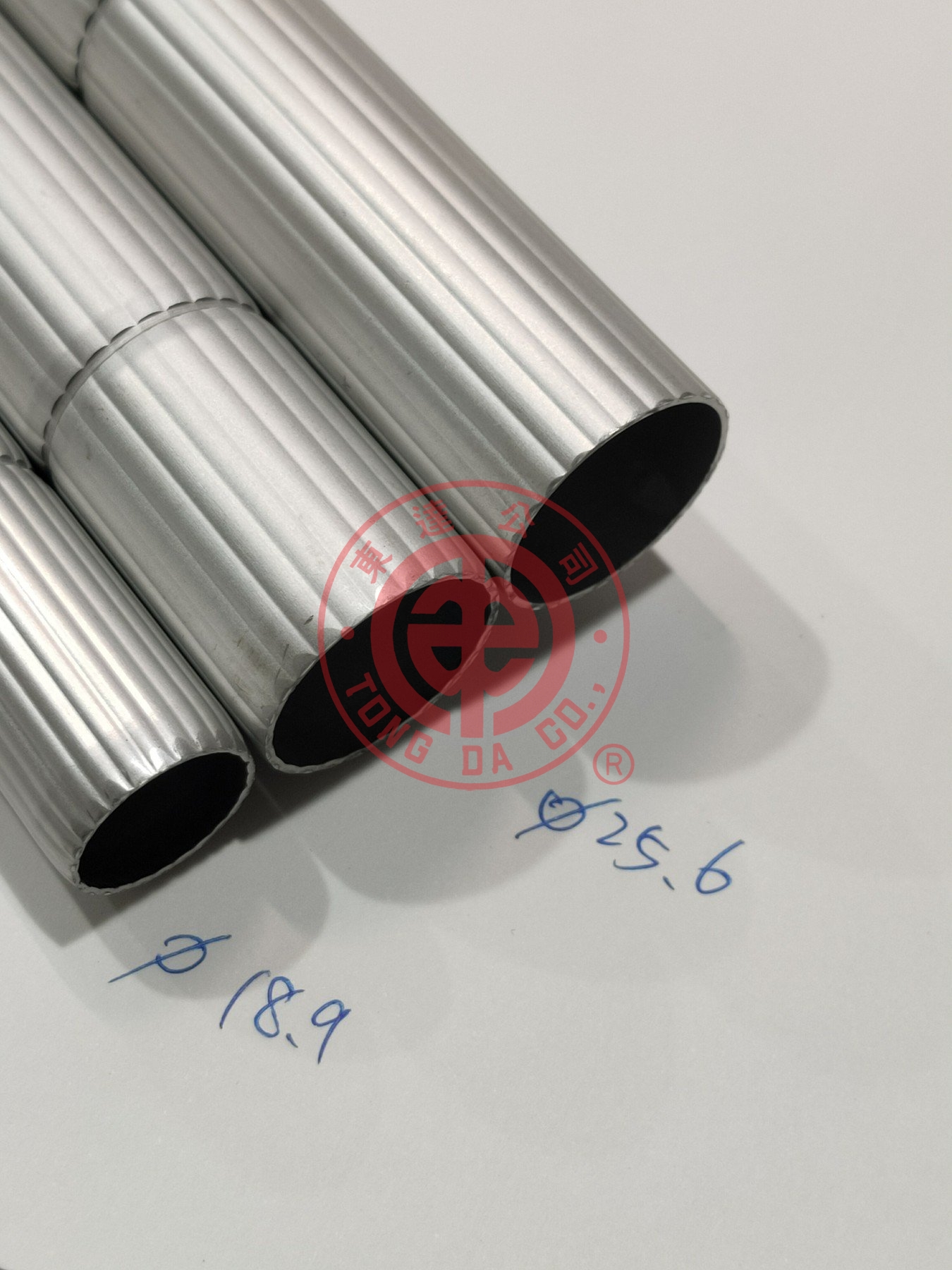

Aluminium tubes roll grooved – various sizes

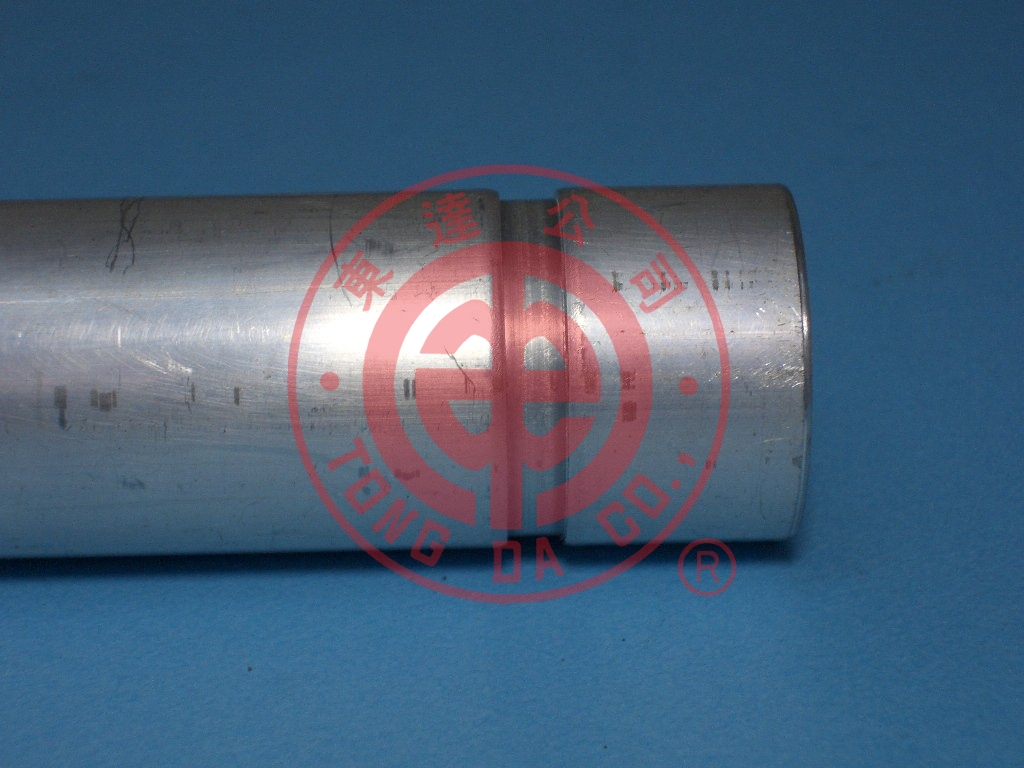

Aluminium tube OD roll grooving

Tube end reducing

Large tube roll groove – measured

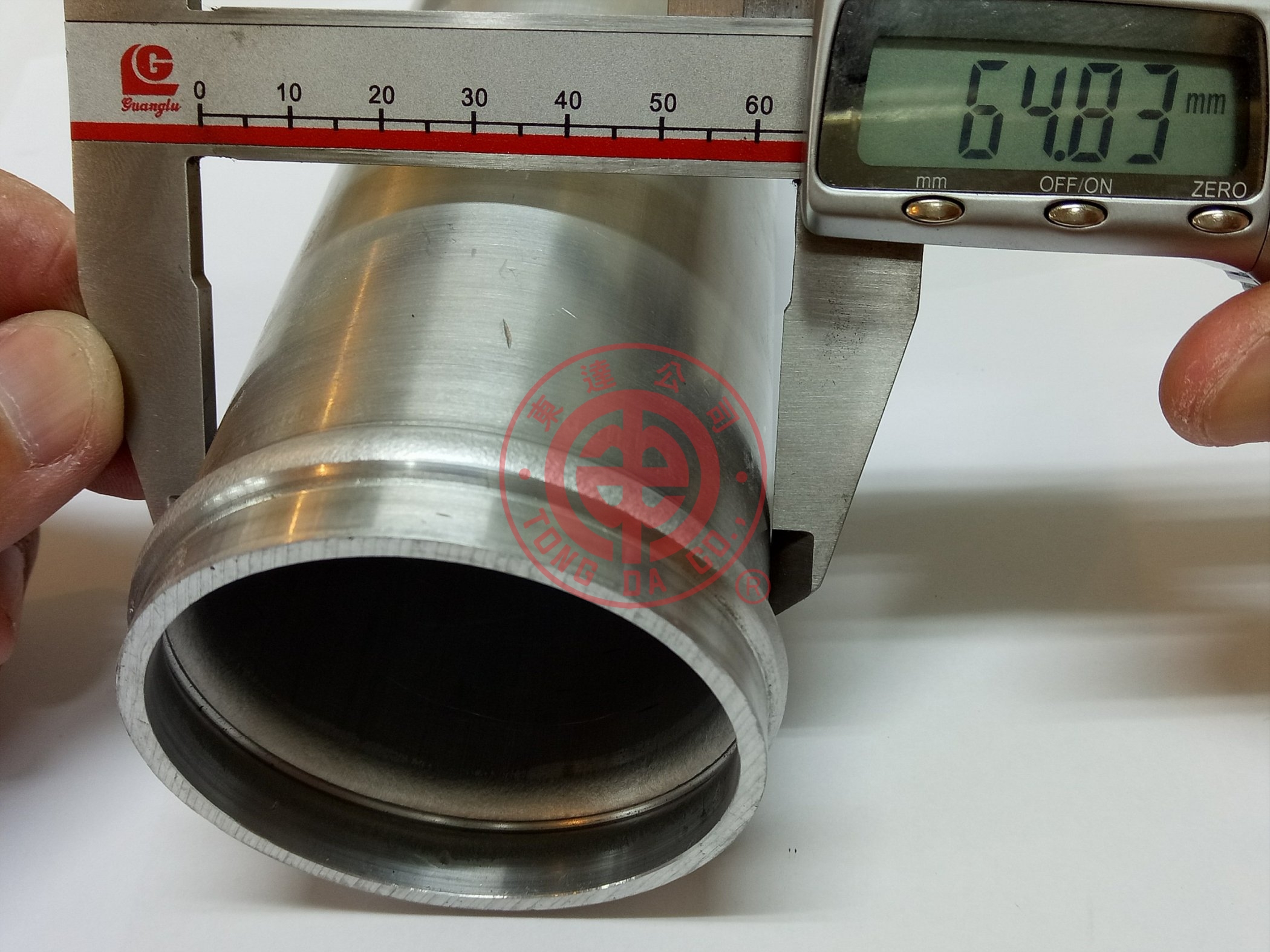

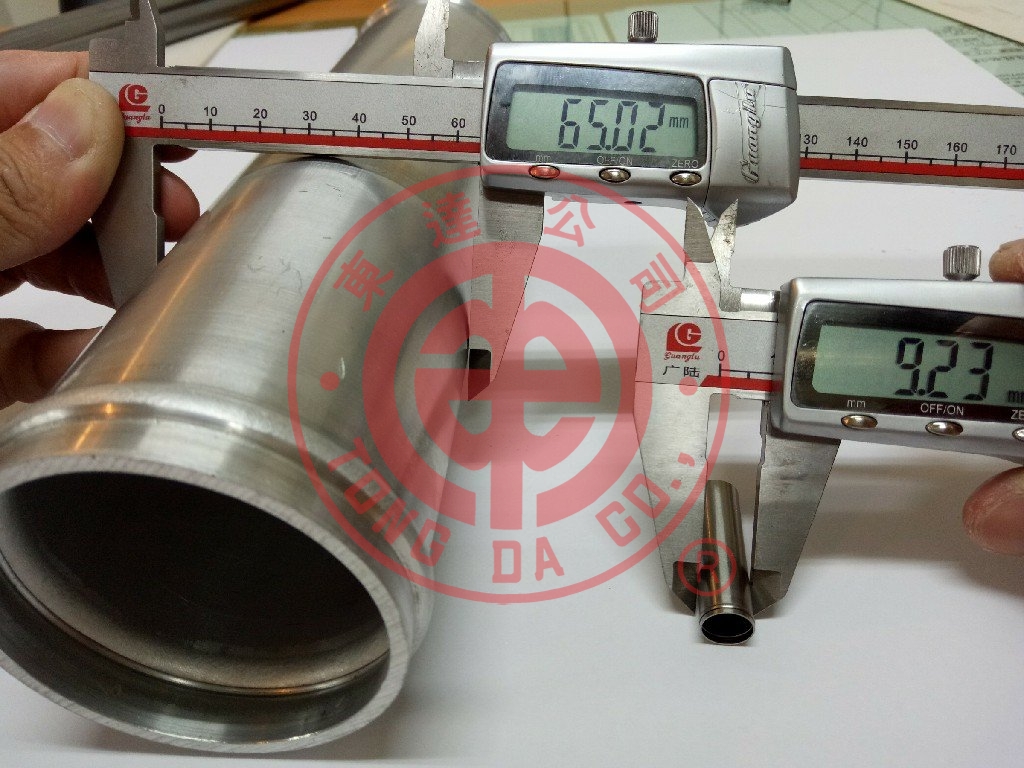

Roll groove dimension check

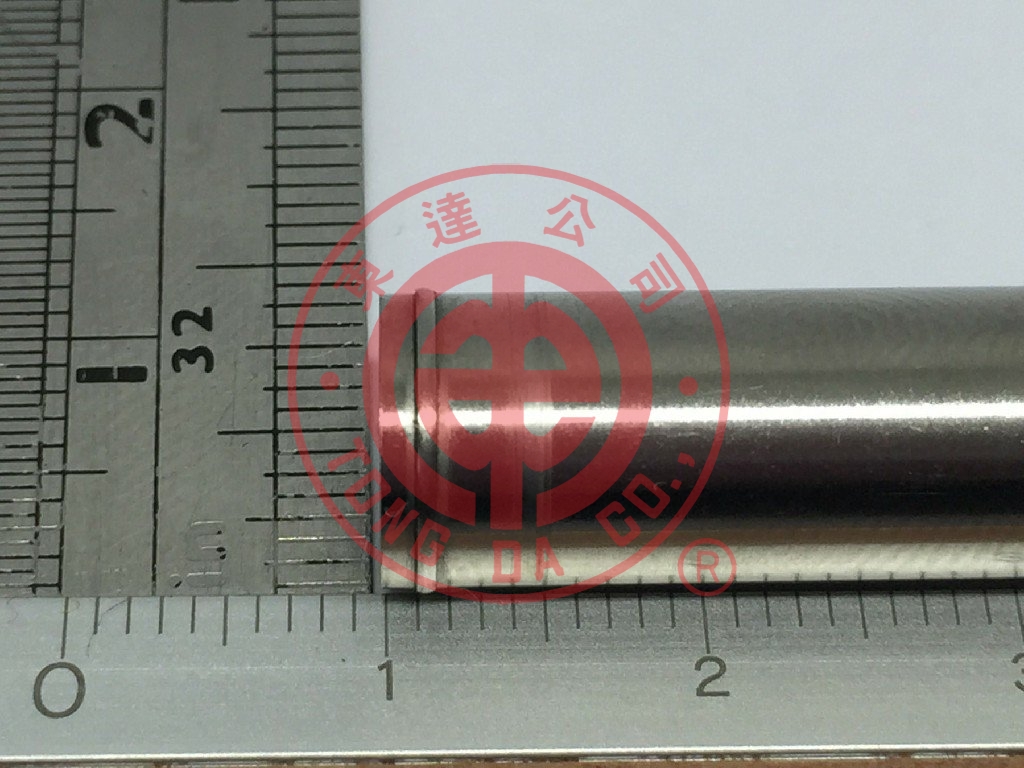

Groove position – measured

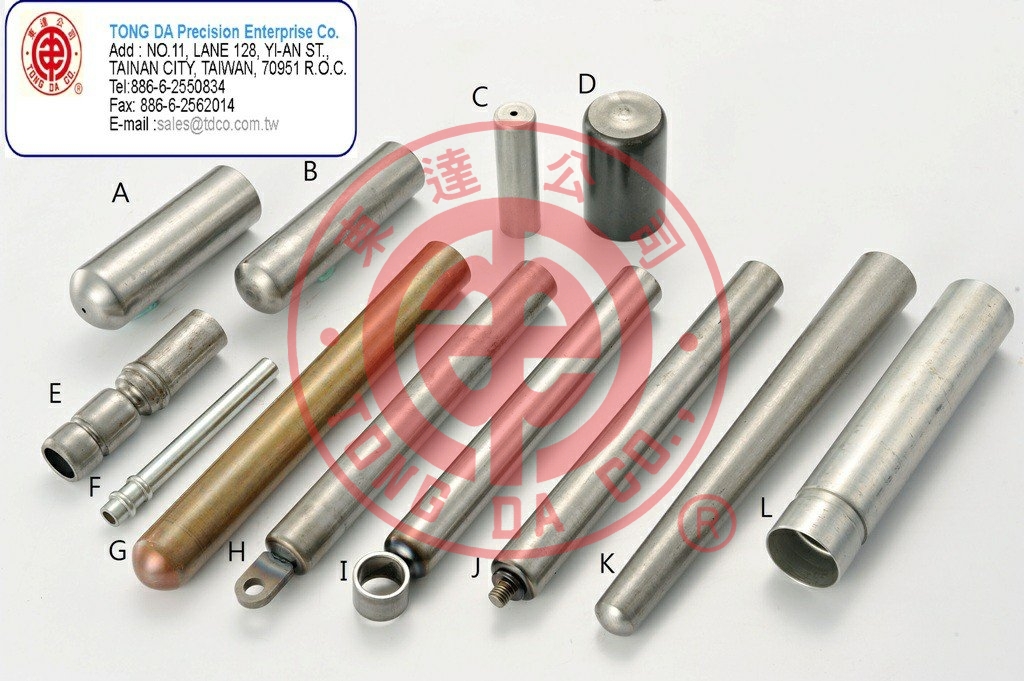

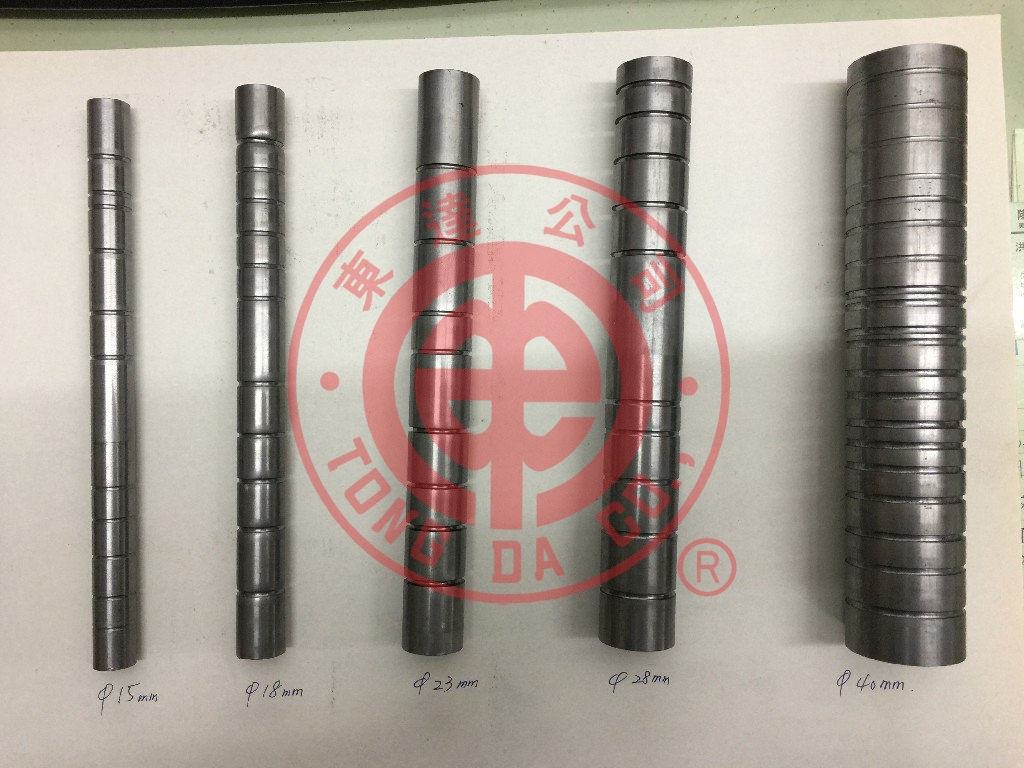

Roll grooved tubes – various diameters

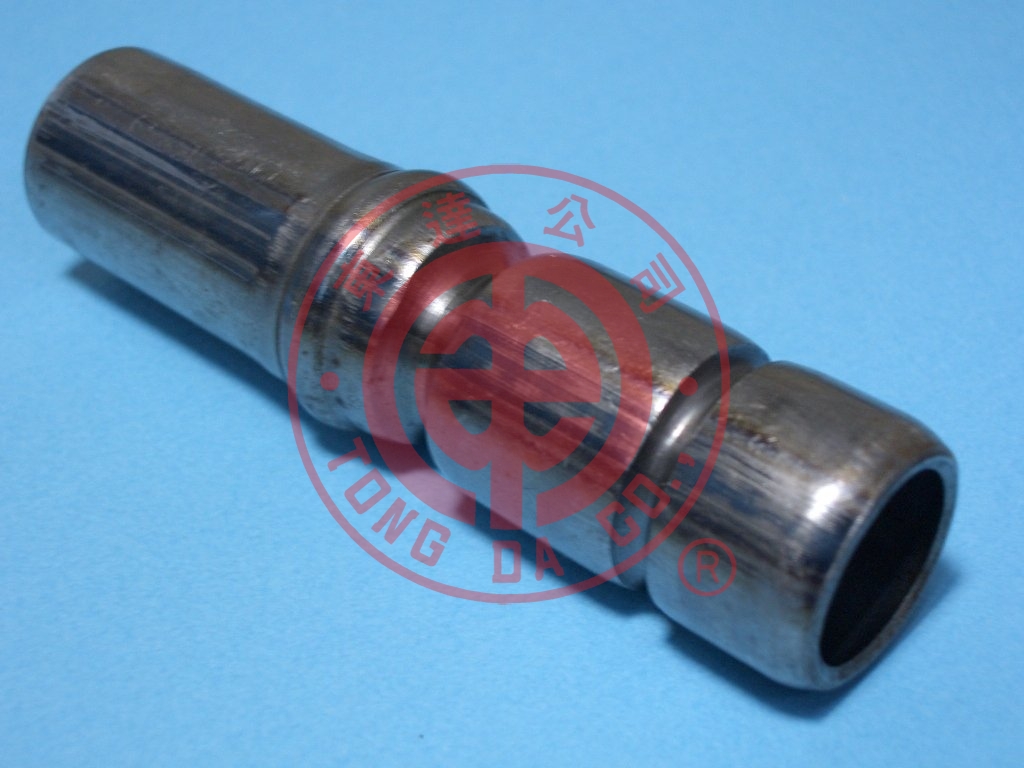

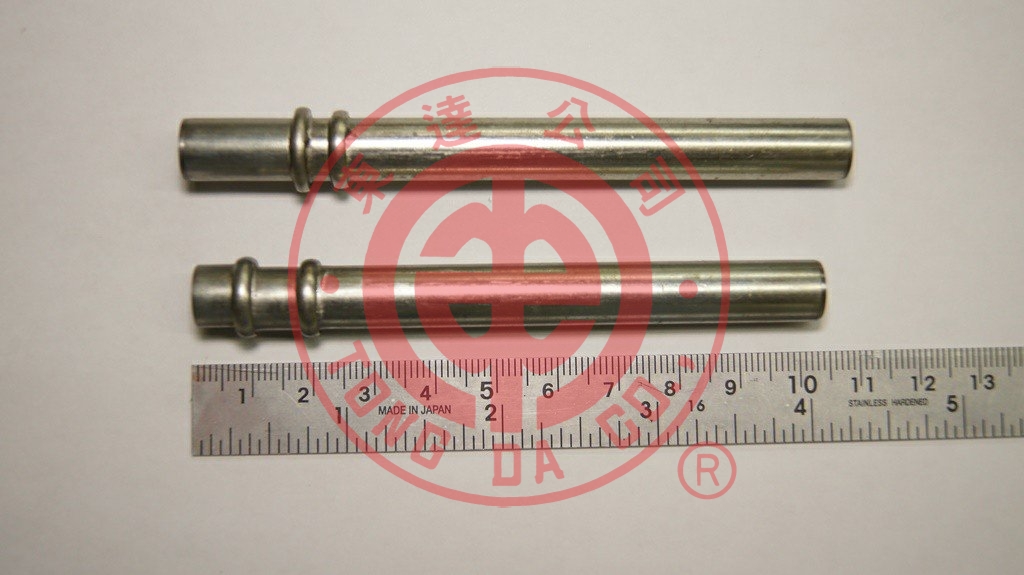

Tubes with double roll grooves

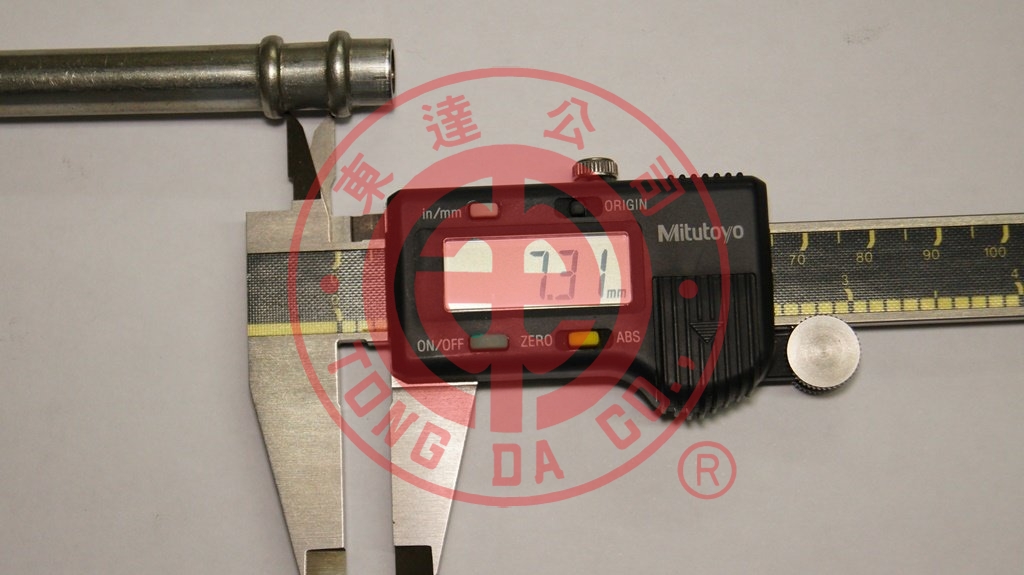

Roll groove depth check

Large tube roll beading

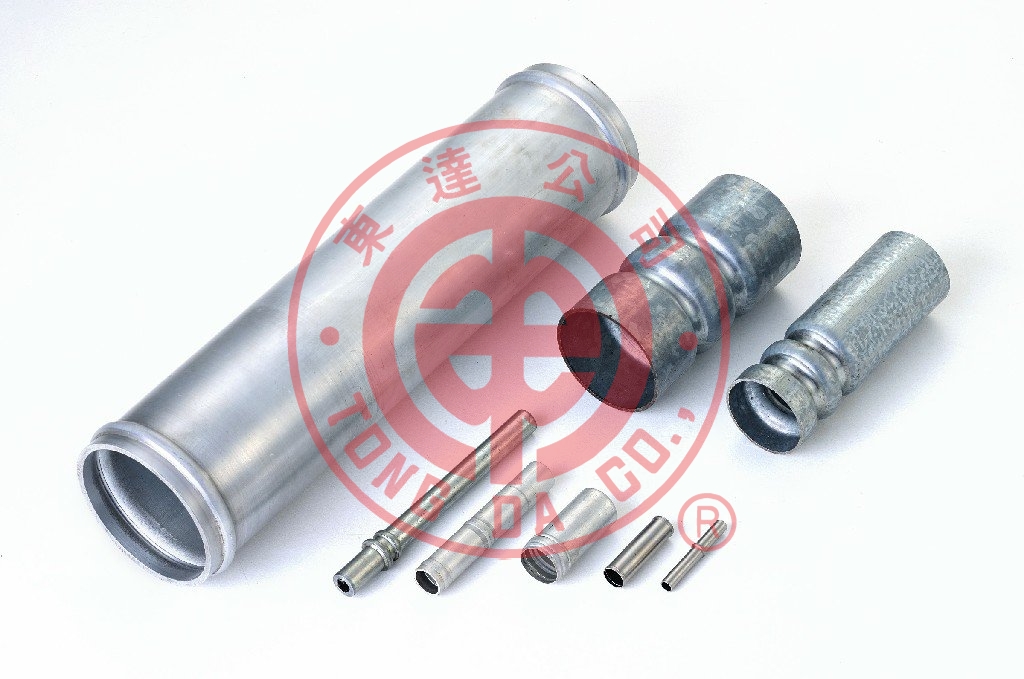

Reduced and closed tubes – various sizes

Large tube end necking

Tube reducing and closing samples

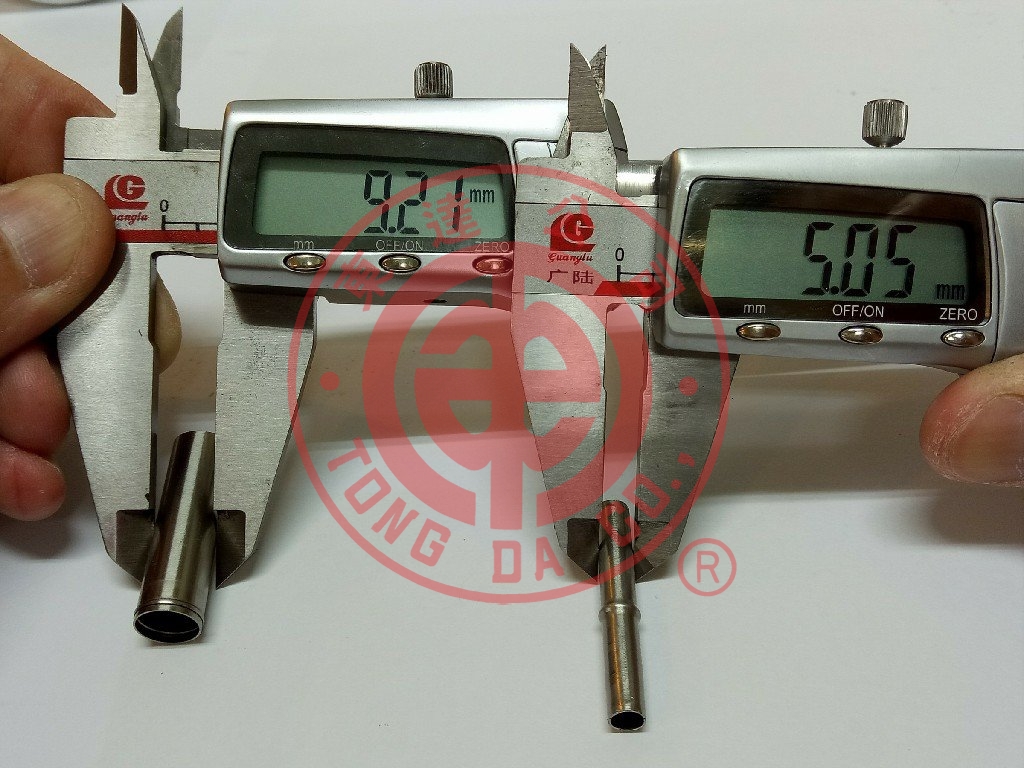

Closed ends of different sizes – measured

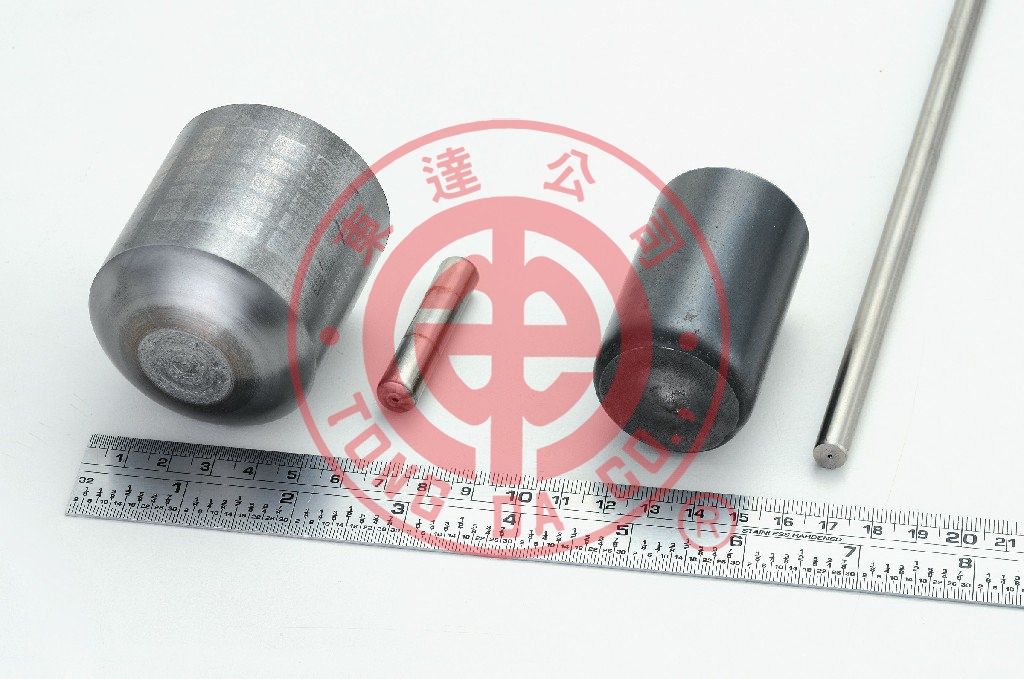

Stainless and copper tube samples

Large tube end bead – measured

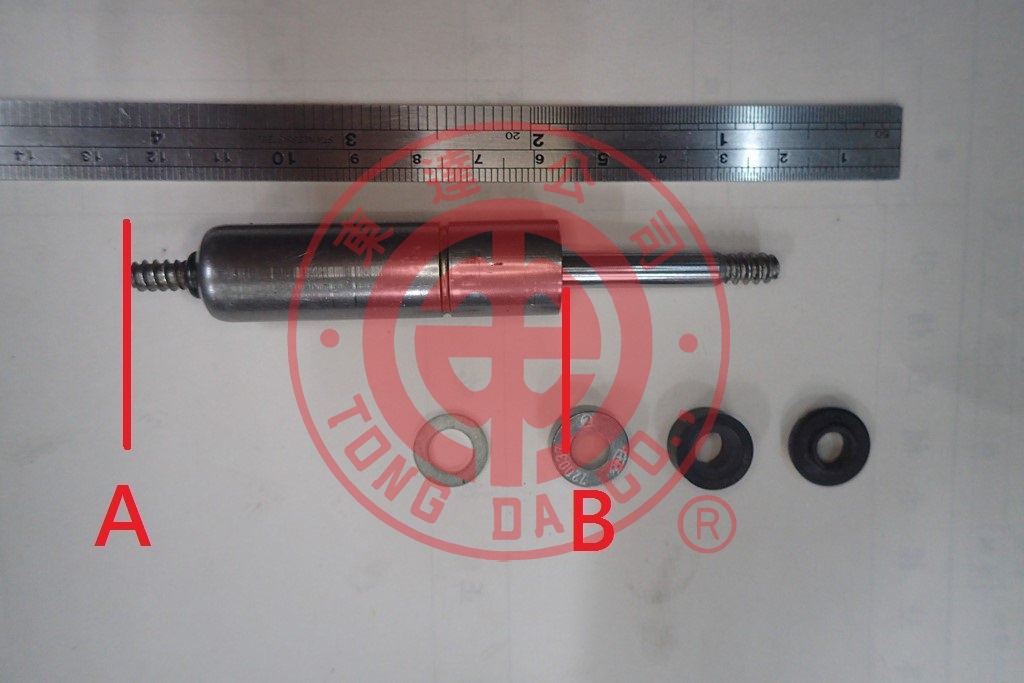

Groove positions A and B marked

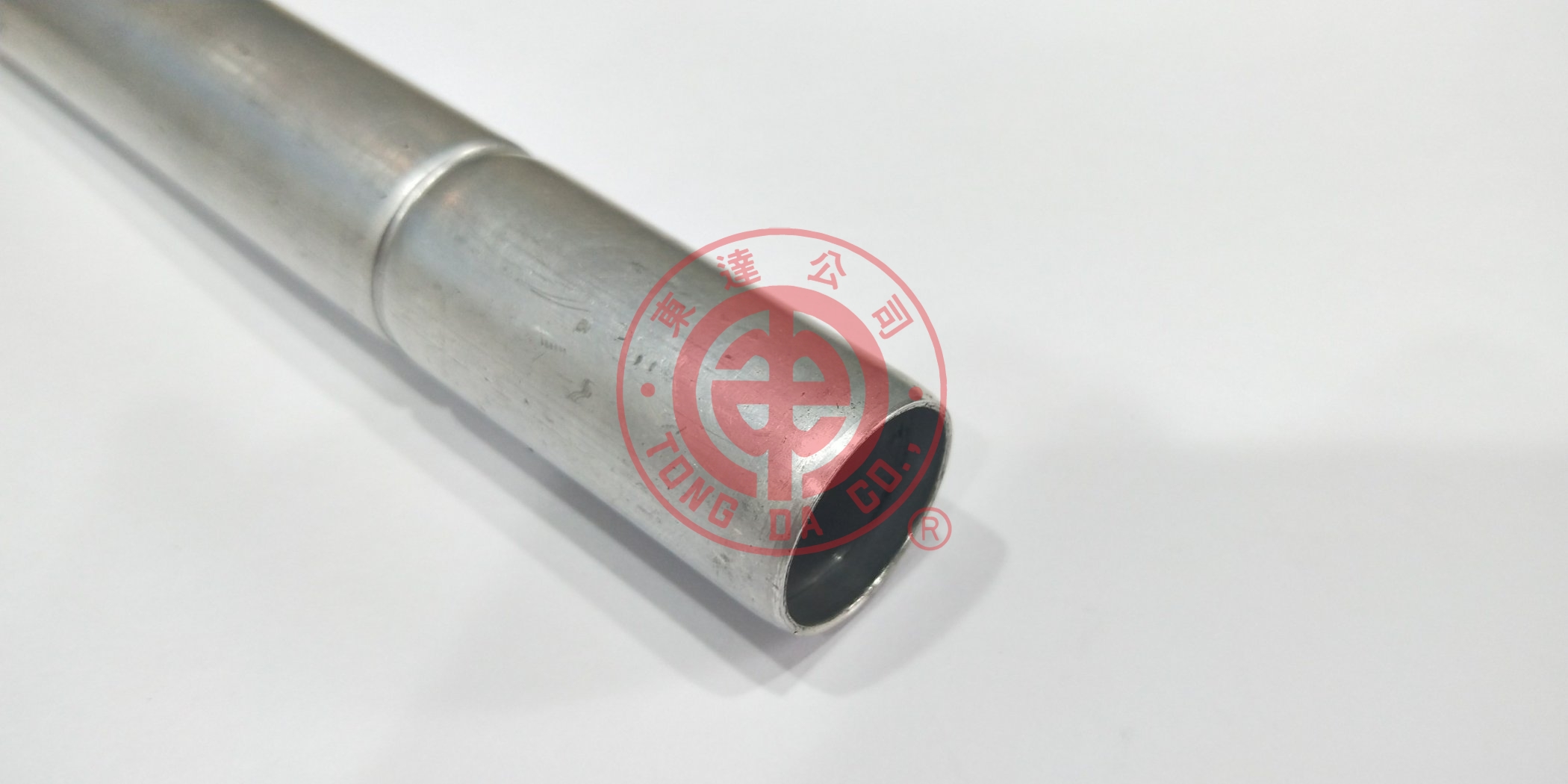

Aluminium tube with ring groove

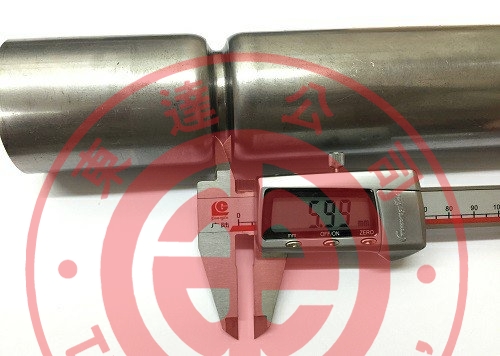

Roll grooved tube – measured

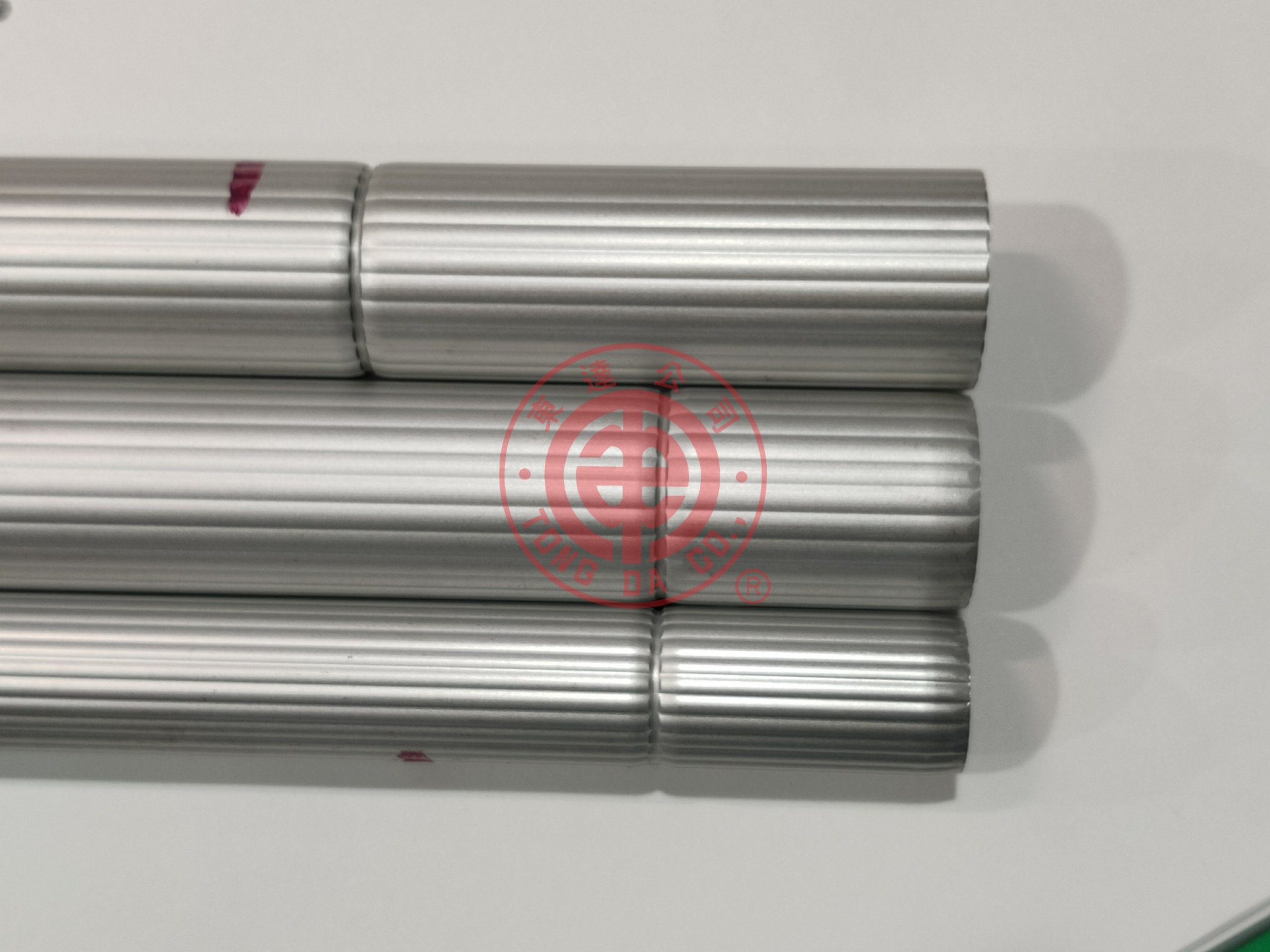

Aluminium tube with double ring groove

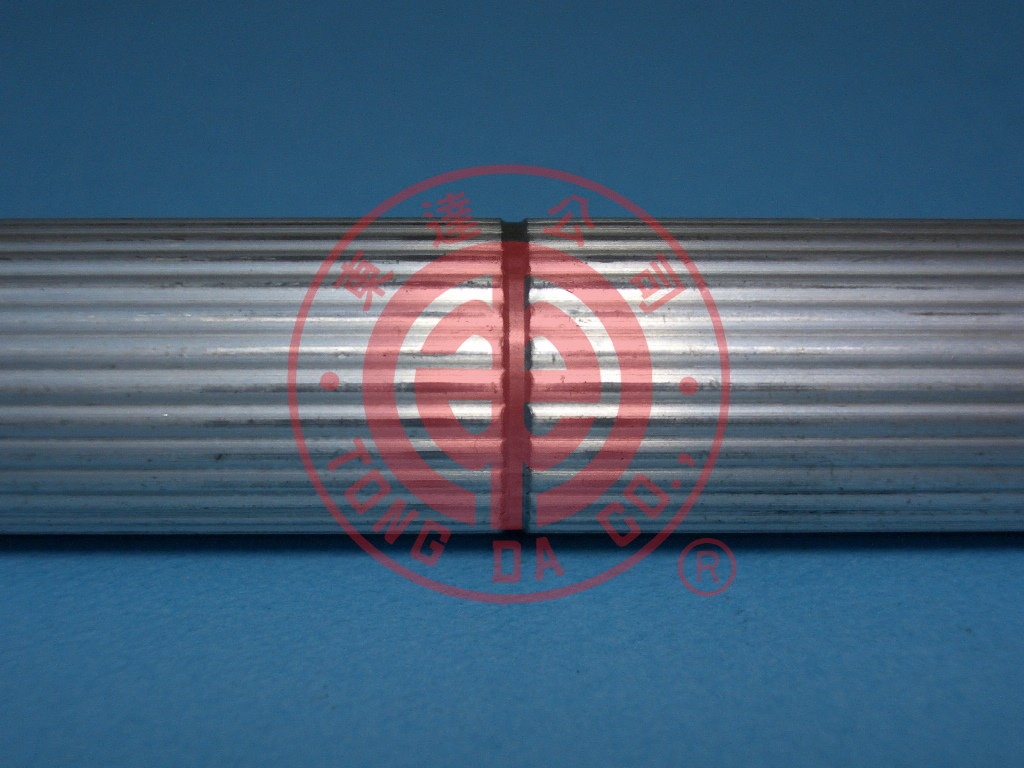

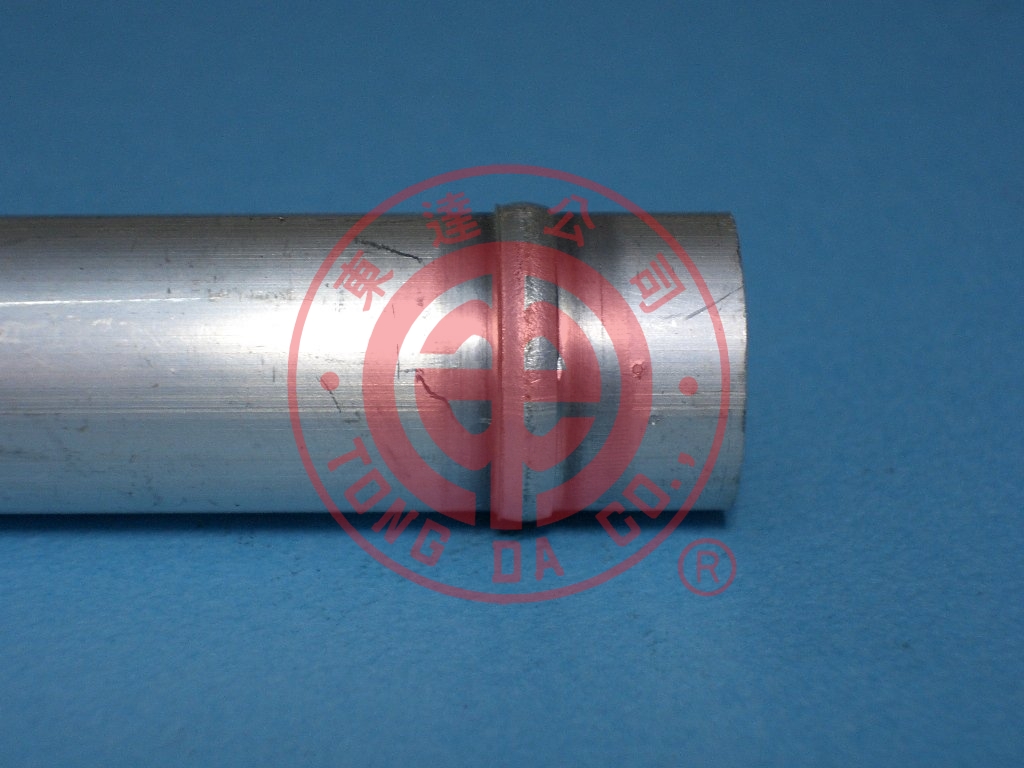

Aluminium tube ring groove close-up

Detailed Information

Product alias：

Tube rolling machine, tube roll grooving machine, tube beading machine, tube reducing (shrinking) machine, roller pipe cutting machine, inner grooving machine

Scope of application :
Tube or pipe assembly products can be a complete or not complete tube rolling grooving and cutting . Its used in the industrial of conveyor, baby stroller, kids tricycle, baby playpen, bicycle, motorbike, automobile, exercise equipment,buffer, deck chair, chaise lounge, furniture, house wares, sanitary wares, recreational facilities, rehabilitation and medical instruments, stainless chopsticks,…etc.

Feature of product:

※High quality tube grooving on demand with no roller marks.
※Variety of metal materials (Steel, stainless steel, copper, aluminum, etc) are adaptable to grooving round tube.
※Hydraulic design permits an accurate and steady performance in connection with the groove depth or projection height.
※ The special design of the advance and retreat groove mechanism can greatly shorten the processing time of the advance and retreat pipe.
※ It is easy to change the groove blade and the groove axis.
※Easily-operated, even by an unprofessional person.
※ The model is small and beautiful, the chassis is stable and does not take up space.
